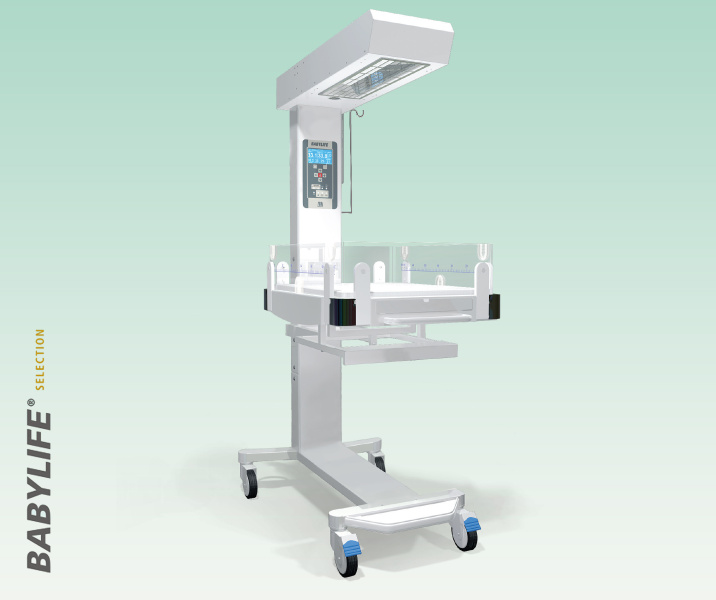

BabyLife BLR-2100A

Warming and Resuscitation Table

Inquiry for Quotation keyboard_arrow_down
selection-logo 6407955d70b6b197277786.jpg

Technical data keyboard_arrow_down Gallery keyboard_arrow_down Video airplay Inquiry for Quotation keyboard_arrow_down

Featured benefits

  • Automatic warm-up
  • Pre-warm (33 oC) & Manual mode (0-100% in 5% increments)
  • Surface temperature servo control (30-38 oC)
  • Skin temp. servo control (32-38 oC increments 0.1 oC) with reusable sensor
  • Heavy duty stand with 4 castors (2 lockable, 150 mm)
  • Protector bumpers on each side & handle on front
  • Foldable side walls (4 pcs, height 17,5 cm) w/ name plate
  • Tube ports & measure line on side walls
  • Lying surface w/ antidecubitus mattress, x-ray compatible
  • Cradle tilting (continuous, up to 10 degrees, both direction)
  • Drawable x-ray cassette tray (35 x 65 cm)
  • Turnable head by 30 and 90 degrees both direction
  • Ceramic heaters with parabolic reflectors and protecting grid
  • Cupboard with two drawers (300x300x90 mm)
  • Gas cylinder holders (two) on the stand
  • Monitor shelves (two) & IV pole on the column
  • Dimmable halogen & LED procedure light
  • 5” LCD display with APGAR timer
  • Set / Display of date / time / temperature / trend, etc.
  • Water resistant, foil-covered keypad with lock
  • State-of-the-art microprocessor controller
  • Visual and audible alarms and backup sensors
  • Continuous self-test function during operation
  • Test button / Self test / Silence / Reset button
  • RS-232 connector
  • 230V/50Hz+/-10% (230V/60Hz or 110V/50-60Hz on request)

Technical data

PHYSICAL ATTRIBUTES (STANDARD VERSION)
Height / Adjustable / Packing 185/185-200/112 cm (72,8/72-78,7/44,1 in)
Width / Packing 120/127 cm (47,2/50 in)
Depth / Packing 71/81 cm (28/31,9 in)
Bed to Floor (fix) 87 cm (33,5 in)
Bed to Floor (adjustable) 87 – 102 cm (33,5 – 39,4 in)
Weight / Packing approx. 90/120 kg (199/265 lbs)
Mains voltage 220/230V ±10% (default), 110/120V ±10% (upon request)
Mains frequency 50 Hz (default), 60 Hz (upon request)
Nominal power consumption 1100W
Nominal power of ceramic heaters (2 pcs) 500 W
Operating ambient temperature range +20°C - +30°C (68oF – 86oF)
Storage/transport ambient temperature range -40oC - +70oC (-40oF - 158oF)
Operating (Storage) ambient RH range 30% - 75% (10% - 100%)
Operating (Storage) air pressure range 700 hPa - 1060 hPa (500 hPa - 1060 hPa)
LYING SURFACE (BED) SPECIFICATION
Surface size 61 x 76 cm (24 x 29,9 in)
Mattress size 60 x 75 x 2 cm (23,6 x 29,5 x 0,8 in)
Mattress to head height 80 cm (31,5 in)
TEMPERATURE CONTROL MODES
Pre-warm mode 33.0°C (91.4°F)
Manual control temperature mode 0%-100%, in 5% increments
Surface control temperature range 30.0°C (86°F) to 38.0°C (100.4°F), in 0.1°C increments
Skin control temperature range 32.0°C (89.6°F) to 38.0°C (100.4°F), in 0.1°C increments
Mattress heating temperature range 30.0°C (86°F) to 33.0°C (91.4°F), in 1°C increments
Peripherial skin / Rectal temperature monitoring Yes
PERFORMANCE
Temperature rise time 25 °C (77°F) ambient < 30 min
Temperature variability under 0.5°C (0.9°F)
Temperature uniformity on the surface of the mattress under 0.7°C (1.2°F)
Correlation of the indicated air temperature with the actual surface temperature ≤ 0.7°C (1.2°F)
Display precision of skin temperature under ±0.1°C (0.1°F)
Measuring precision of skin temperature sensor under ±0.3°C (0.5°F)
APGAR warning signal after 1 / 5 / 10 min
OXYGEN SERVO CONTROL
Oxygen control range 21% to 90% (head hood)
Oxygen control accuracy of full scale ± 3%
Oxygen display accuracy (100% calibration) ± 3%
Oxygen display accuracy (21% calibration) ± 3%
Oxygen display resolution 1%
WEIGHING SCALE
Weight range 0 to 8 kg (17,1 lbs)
Weight display resolution 5 gr or 0,2 oz
Weight accuracy up to 5 kg ± 5 gr, over 5 kg ± 10 gr
Low voltage alarm
LOADING
Max. load of mattress 10 kg (22,1 lbs)
Max. load of IV pole 2 kg (4,7 lbs)
Max load of shelves 2 kg (4,7 lbs)
DEVICE CLASSIFICATION
Protection class Class I, Type BF, continuous operation
Ingress of liquids IP20
Electric safety IEC 60601-1; IEC 60601-2-21
TREND PARAMETERS
3/24/170-hour trend Surface temperature, Skin temperature, Mattress temperature, Peripherial temperature, Oxygen concentration, Heater power

*Additional features in case of demand. The models illustrated in this brochure show the specifications of neonatal warming and resuscitation table produced by MEDICOR for the European market. In part, they include optional equipment and accessories not fitted as standard. For more precise information about country-specific product versions, please contact your local partner. Subject to change in design, specification and options without prior notice.

Gallery


Inquiry for Quotation

done Includes the package | remove Not included | Optional Standard version
Heavy duty stand with 4 castors (2 lockable, 150 mm) done
Electric height adjustment with foot pedal 870 - 1020 mm
Instrument shelf on the stand (350x790 mm)
Cupboard with two drawers (300x300x90 mm) on the stand done
Cupboard with four drawers (300x300x90 mm) on the stand
Gas cylinder holders (two) on the stand done
Protector bumpers on each side done
Handle for movement done
Monitor shelves (two) on the column done
IV pole on the column done
done Includes the package | remove Not included | Optional Standard version
Foldable side walls (4 pcs, height 17,5 cm) done
Measure line on two side walls done
Tube ports on side walls done
Name plate on front wall done
Lying surface with foam mattress, x-ray compatible
Lying surface with anti-decubitus mattress, x-ray compatible done
Gel mattress
Net mattress
Mechanical cradle tilting (continuous, up to 10 degrees, both direction) done
Drawable x-ray cassette tray (35 x 65 cm) done
done Includes the package | remove Not included | Optional Standard version
Turnable head by 30 and 90 degrees both direction done
Ceramic heaters (two) with protecting grid done
Bright and soft lighting done
Dimmable halogen light done
LED procedure light done
done Includes the package | remove Not included | Optional Standard version
10,4” colour touchscreen monitor
WIFI connection
7” colour LCD display
RS-232 connector done
Text / icon messages done
Test button / Self test / Silence / Reset button done
Continuous self-test function during operation done
Visual and audible alarms and backup sensors done
UPS (Uninterruptible Power Supply) from 30 min operation time
State-of-the-art microprocessor controller done
Water resistant, foil-covered keypad with lock done
Integrated camera
Display of heating intensity, 3/24/170 hours trend, actual and measured values done
Keypad lock done
APGAR timer done
Ambient temperature monitoring
Set / Display of date / time / temperature, etc. done
5” LCD display done
LAN connection
RS-232 разъём done
done Includes the package | remove Not included | Optional Standard version
Automatic warmup done
Pre-warm mode (33 °C) done
Manual mode (0-100%) done
Surface temperature servo control (30-38 oC) done
Skin temperature servo control (34-38 oC) done
Adjustable mattress heating (30-33/36 oC) done
Peripherial skin temperature sensor with one reusable probe
Peripherial rectal temperature sensor with one reusable probe
Reusable skin temperature sensor probe done
Disposable skin temperature sensor probe
Reusable rectal temperature sensor probe
Disposable rectal temperature sensor probe
done Includes the package | remove Not included | Optional Standard version
Flowmeter with heated humidifier (0-6 or 0-15 l/min)
Oxygen servo in head-hood (21-75%)
NeoTee disposable infant T-piece resuscitator with PIP and PEEP control
Integrated Neonatal T-piece Resuscitator with PIP and PEEP control
Auto NeoBreath Integrated Neonatal T-piece Resuscitator with PIP and PEEP control
Air/Oxygen blender
Weighing scale with display (0-8 kg)
Built-in pulseoximeter with reusable sensor probe and extension cord
Reusable SpO2 sensor probe
Disposable SpO2 sensor probe
SpO2 extension cord
Venturi type suction unit with jar (-1,0 бар 500 мл)
Electromechanical type suction unit with jar (-1,0 bar; 500 ml)
Integrated LED phototherapy unit
done Includes the package | remove Not included | Optional Standard version
Fixing head frame
Head-hood
Neonate protecting eyemask (disposable, 10 pcs)
Reusable textile cover
done Includes the package | remove Not included | Optional Standard version
Language English done
Language CN/DE/ES/FR/HU/RU Upon request
